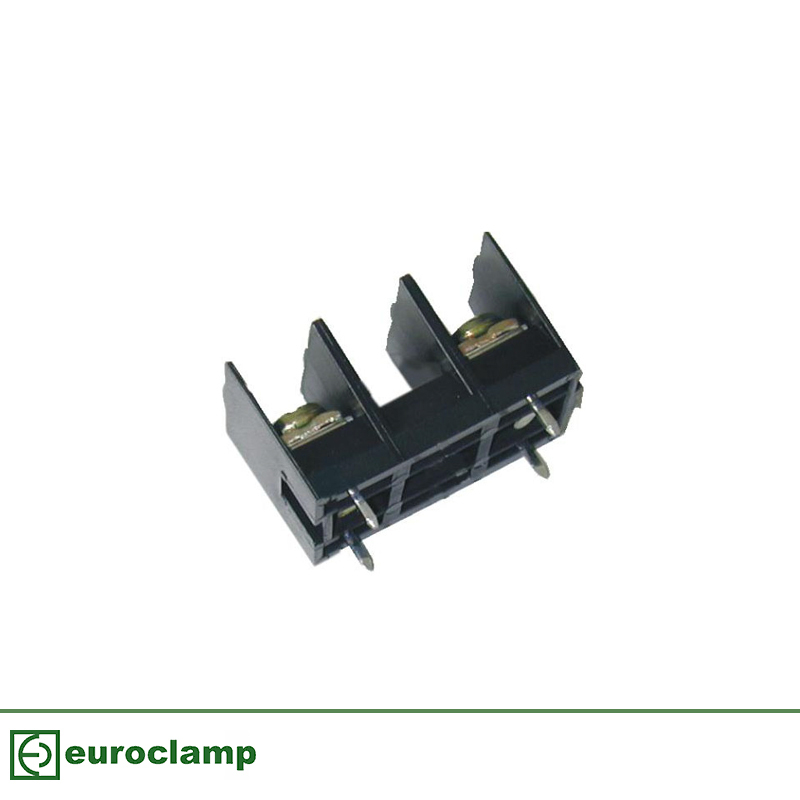

20mm Pitch Barrier PCB Terminal Blocks

20mm Pitch Barrier PCB Terminal Blocks

• 20mm pitch Barrier Terminal Block
• 1-2 pole solid block
• Single and Double in variants
• Polarised mouldings
• Moulded in black UL94-V0 flame retardant PA
• Clamp style terminals
• Captive screws
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Colour Amperage Materials (Body) Cable Size, Flexible (mm2) Cable Size, Solid (mm2) Voltage Pitch Materials (Terminals) Operating Temperature Poles Price
MT211-20 EUROCLAMP PCB TERMINAL BLOCK VERTICAL 25A 20mm 1 POLE Black 25 AMP PA - UL 94 V9 2 X 2.5 2 X 2.5 750V 20.00mm Tin-plated copper alloy -40 to +130℃ 1
MT212-20 EUROCLAMP PCB TERMINAL BLOCK VERTICAL 25A 20mm 2 POLE Black 25 AMP PA - UL 94 V10 2 X 2.5 2 X 2.5 750V 20.00mm Tin-plated copper alloy -40 to +130℃ 2
