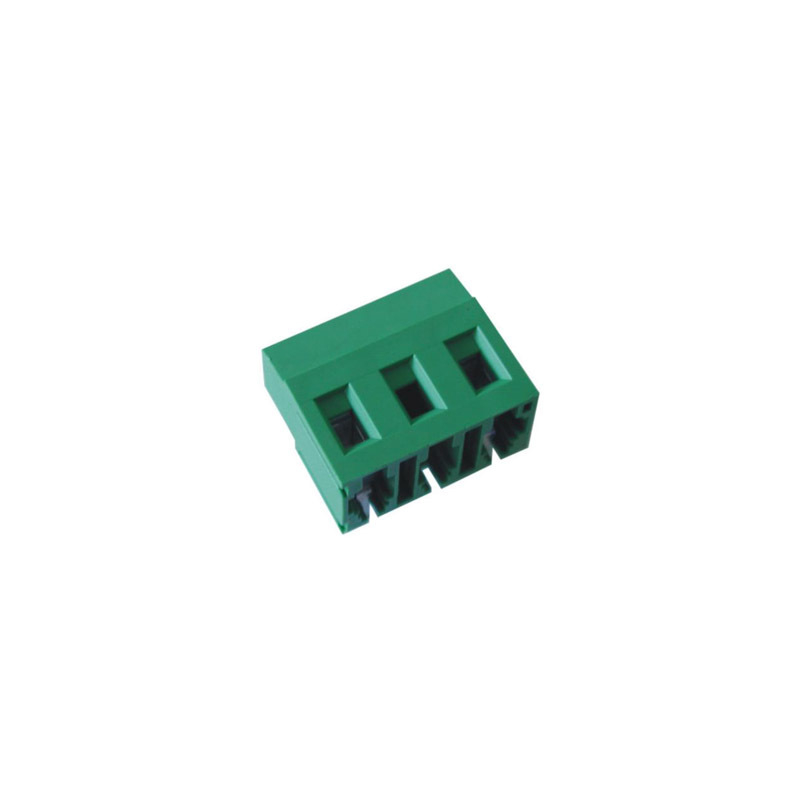

MVSP27-H Single Deck PCB Terminal Blocks

MVSP27-H Single Deck PCB Terminal Blocks

  • 15.24mm Pitch PCB Terminal Block
  • 1-2 Pole Interlocking
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVSP271-15.24-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 24A 15.24mm 1 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V5 1 -40 to +130?C 24 AMP 15.24mm 750V
MVSP272-15.24-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 24A 15.24mm 2 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V6 2 -40 to +130?C 24 AMP 15.24mm 750V
