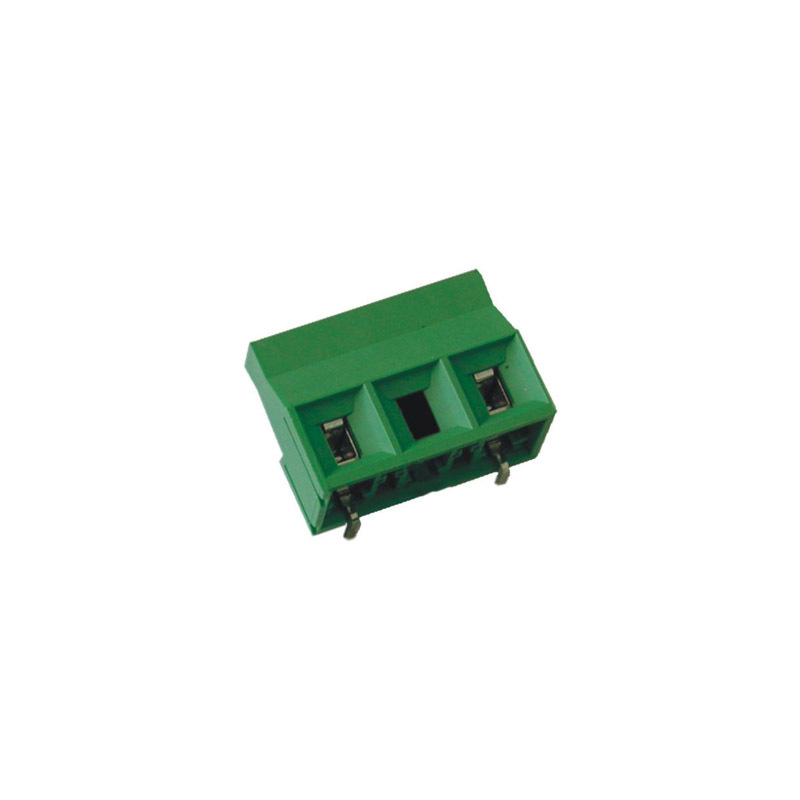

MV49-H Single Deck PCB Terminal Blocks

MV49-H Single Deck PCB Terminal Blocks

  • 19.04mm Pitch PCB Terminal Block
  • 1-2 Pole Interlocking
  • 32 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request
Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MV491-19.04-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 32A 19.04mm 1 POLE Green Tin-plated copper alloy 6 6 PA - UL 94 V5 1 -40 to +130?C 32 AMP 19.94mm 750V
MV492-19.04-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 32A 19.04mm 2 POLE Green Tin-plated copper alloy 6 6 PA - UL 94 V6 2 -40 to +130?C 32 AMP 19.04mm 750V
