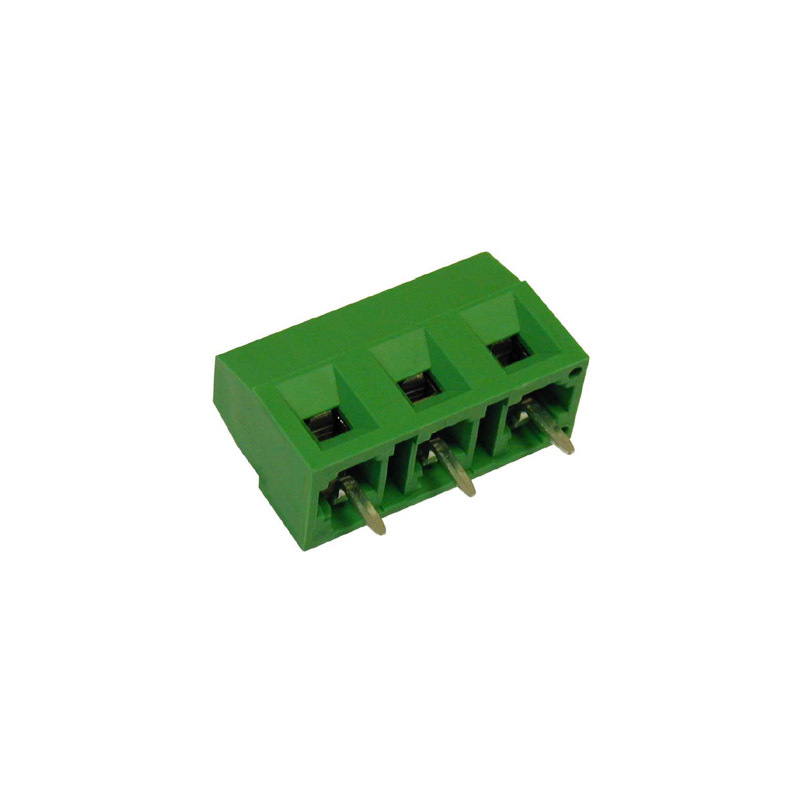

MV13-V-L Single Deck PCB Terminal Blocks

MV13-V-L Single Deck PCB Terminal Blocks

  • 7.62mm Pitch PCB Terminal Block
  • 2-6 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MV131-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 1 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 1 -40 to +130?C 13.5 AMP 7.62mm 450V
MV132-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 2 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 2 -40 to +130?C 13.5 AMP 7.62mm 450V
MV133-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 3 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 3 -40 to +130?C 13.5 AMP 7.62mm 450V
MV134-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 4 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 4 -40 to +130?C 13.5 AMP 7.62mm 450V
MV135-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 5 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 5 -40 to +130?C 13.5 AMP 7.62mm 450V
MV136-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 6 POLE Green Tin-plated copper alloy 1.5 1 PA - UL 94 V0 6 -40 to +130?C 13.5 AMP 7.62mm 450V
