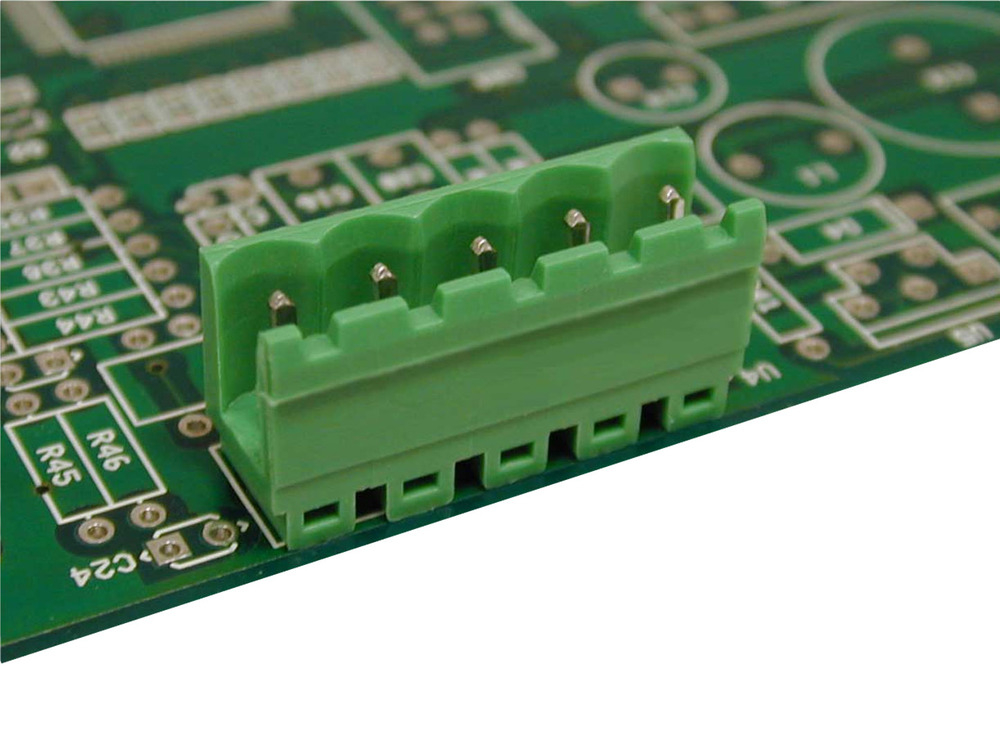

Vertical Male 10mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 10mm Plug in connectors
• 2-12 pole solid block
• Pluggable male connectors
• Open headers
• Vertical male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
PV02-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 2 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	2	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV03-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 3 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	3	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV04-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 4 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	4	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV05-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 5 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	5	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV06-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 6 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	6	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV07-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 7 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	7	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV08-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 8 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	8	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV09-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 9 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	9	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV10-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 10 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	10	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV11-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 11 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	11	15 AMPS	Green	-40 to +130℃	Please login to see prices.
PV12-10.00-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 10mm 12 POLE	N/A	Tin-plated copper alloy	10mm	500V	N/A	PA - UL 94 V0	12	15 AMPS	Green	-40 to +130℃	Please login to see prices.
