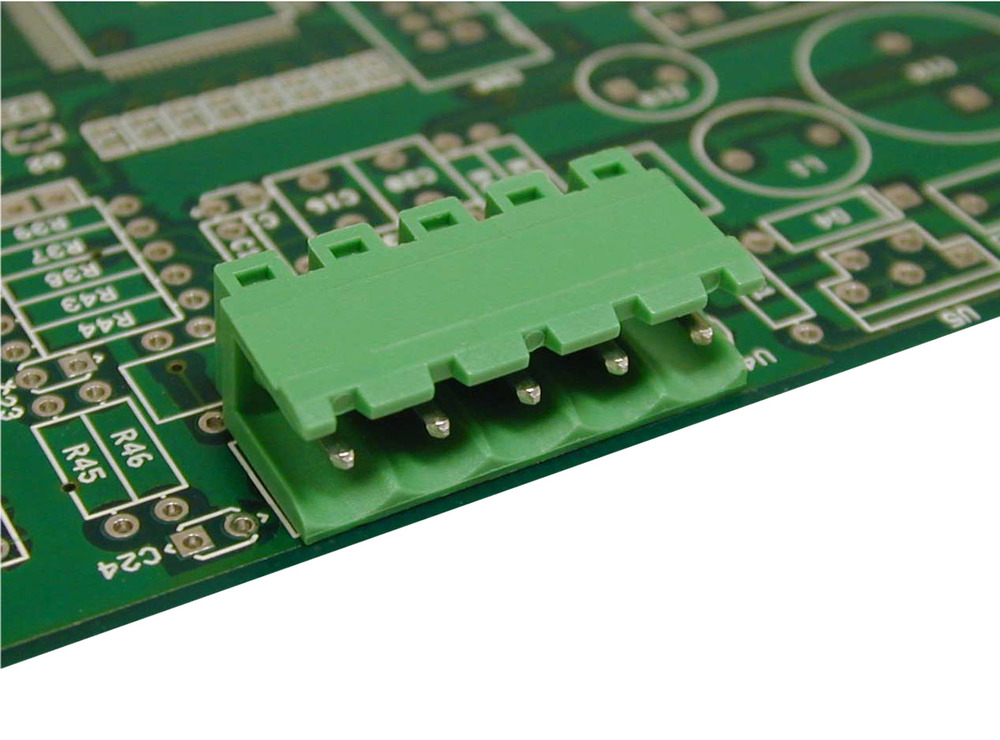

Horizontal Male 10.16mm Pitch Plug In Terminal Blocks Open End

• 10.16mm Plug in connectors
• 2-12 pole solid block
• Pluggable male connectors
• Open headers
• Horizontal male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Code	Description	Colour	Materials (Terminals)	Cable Size, Solid (mm2)	Cable Size, Flexible (mm2)	Materials (Body)	Poles	Operating Temperature	Amperage	Pitch	Voltage	Price
PV02-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 2 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	2	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV03-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 3 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	3	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV04-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 4 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	4	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV05-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 5 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	5	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV06-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 6 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	6	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV07-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 7 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	7	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV08-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 8 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	8	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV09-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 9 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	9	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV10-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 10 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	10	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV11-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 11 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	11	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
PV12-10.16-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 10.16mm 12 POLE	Green	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	12	-40 to +130?C	15 AMPS	10.16mm	500V	Please login to see prices.
