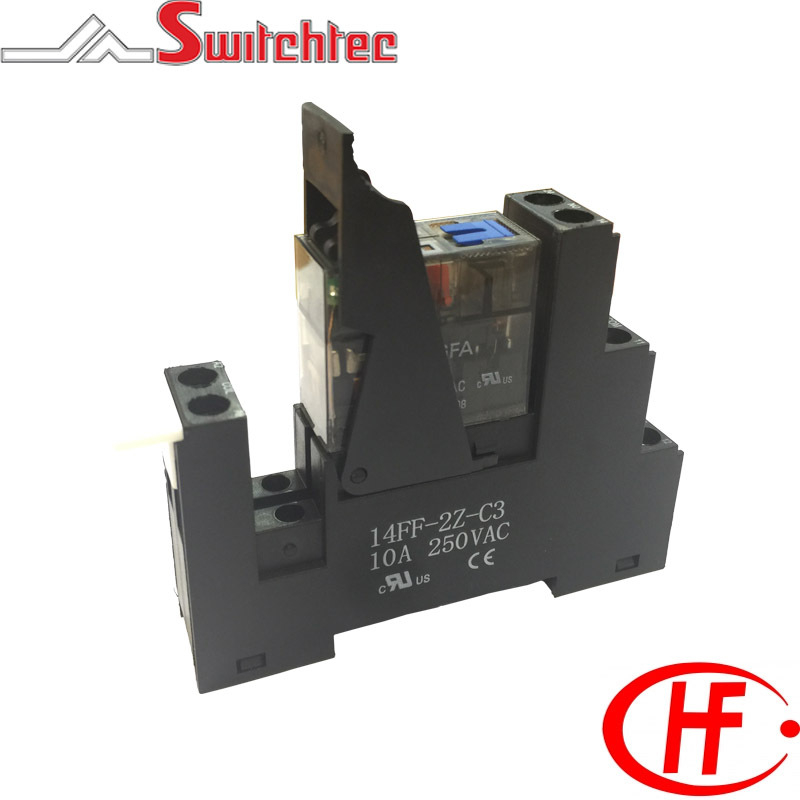

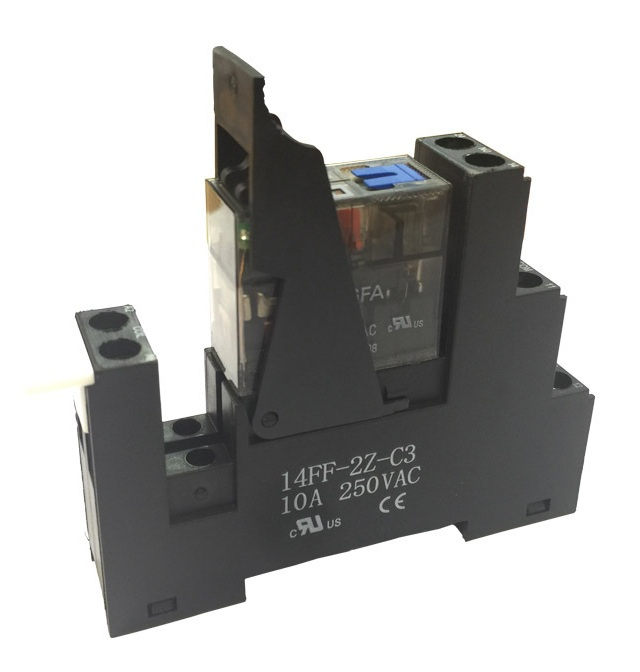

8 Amp Double Pole

8 Amp Double Pole

    • Change Over Contacts
    • Supplied complete, Relay, Socket, Ejector Clip and Identification Label
    • 1 Part Number for simple ordering
    • AC & DC Coils
    • Built in Supply status LED
    • 35mm DinRail mounting
    • Built in Test Butto & Flag Indicator
    • Other Coil Voltages available on request
    • Approvals UL, CE & VDE

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Relay Type Retainer Clip Maximum Rated Switching Current Additional Features Socket Type Relay Voltage Coil Voltage Contact Arrangement Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Dimensions (mm) Operating Temperature Approvals Price
2RMTFL-110A HONGFA RELAY INTERFACE MODULE 2CO 110VAC HF115FPA1152Z4B 14F-ERC-3 8AMP Contact Separation Socket 14FF-2Z-C3 110VAC 110VAC 2C - Double Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
2RMTFL-12 HONGFA RELAY INTERFACE MODULE 2CO 12VDC HF115FP0122Z4B 14F-ERC-3 8AMP Contact Separation Socket 14FF-2Z-C3 12VDC 12VDC 2C - Double Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
2RMTFL-24 HONGFA RELAY INTERFACE MODULE 2CO 24VDC HF115FP0242Z4B 14F-ERC-3 8AMP Contact Separation Socket 14FF-2Z-C3 24VDC 24VDC 2C - Double Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
2RMTFL-240A HONGFA RELAY INTERFACE MODULE 2CO 240VAC HF115FPA2302Z4B 14F-ERC-3 8AMP Contact Separation Socket 14FF-2Z-C3 230VAC 230VAC 2C - Double Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
2RMTFL-24A HONGFA RELAY INTERFACE MODULE 2CO 24VAC HF115FPA0242Z4B 14F-ERC-3 8AMP Contact Separation Socket 14FF-2Z-C3 24VAC 24VAC 2C - Double Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
