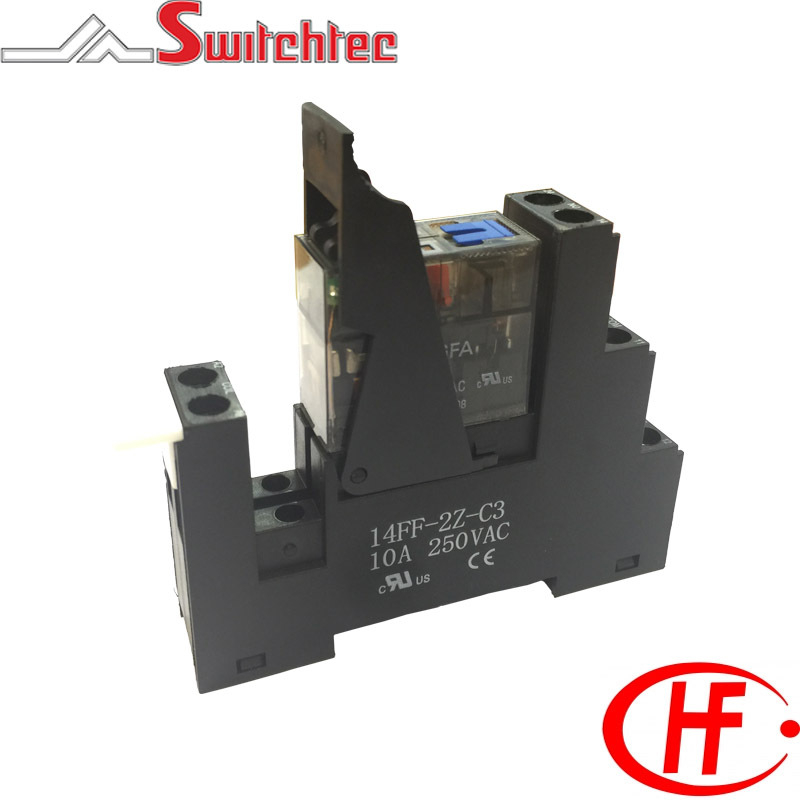

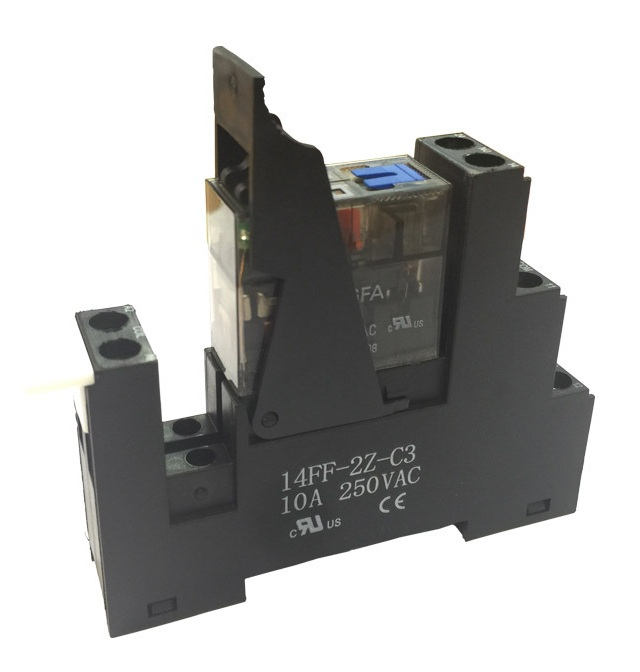

16 Amp Single Pole

16 Amp Single Pole

    • Change Over Contacts
    • Supplied complete, Relay, Socket, Ejector Clip and Identification Label
    • 1 Part Number for simple ordering
    • AC & DC Coils
    • Built in Supply status LED
    • 35mm DinRail mounting
    • Built in Test Butto & Flag Indicator
    • Other Coil Voltages available on request
    • Approvals UL, CE& VDE

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Relay Type Retainer Clip Maximum Rated Switching Current Additional Features Socket Type Relay Voltage Coil Voltage Contact Arrangement Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Dimensions (mm) Operating Temperature Approvals Price
1RMTFL-110A HONGFA RELAY INTERFACE MODULE 1CO 110VAC HF115FP0121Z3B 14F-ERC-3 16AMP Contact Separation Socket 14FF-2Z-C3 110VAC 110VAC 1C - Single Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
1RMTFL-12 HONGFA RELAY INTERFACE MODULE 1CO 12VDC HF115FP0121Z3B 14F-ERC-3 16AMP Contact Separation Socket 14FF-2Z-C3 12VDC 12VDC 1C - Single Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
1RMTFL-24 HONGFA RELAY INTERFACE MODULE 1CO 24VDC HF115FP0121Z3B 14F-ERC-3 16AMP Contact Separation Socket 14FF-2Z-C3 24VDC 24VDC 1C - Single Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
1RMTFL-240A HONGFA RELAY INTERFACE MODULE 1CO 240VAC HF115FP0121Z3B 14F-ERC-3 16AMP Contact Separation Socket 14FF-2Z-C3 230VAC 230VAC 1C - Single Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
1RMTFL-24A HONGFA RELAY INTERFACE MODULE 1CO 24VAC HF115FP0121Z3B 14F-ERC-3 16AMP Contact Separation Socket 14FF-2Z-C3 24VAC 24VAC 1C - Single Pole Changeover 1 x 4/ 2 x 2.5 1 x 4/ 2 x 2.5 76 x 76 x 15.8 -40 to +70℃ CE, UL
