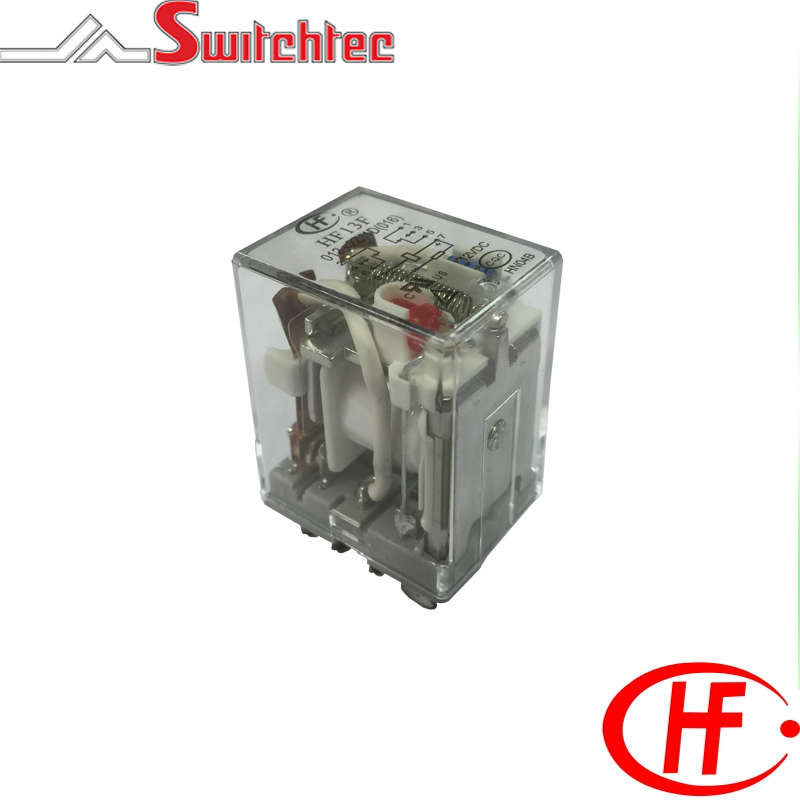

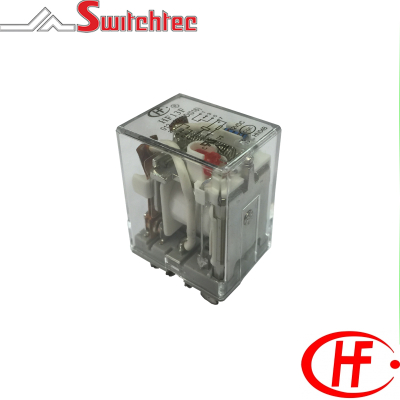

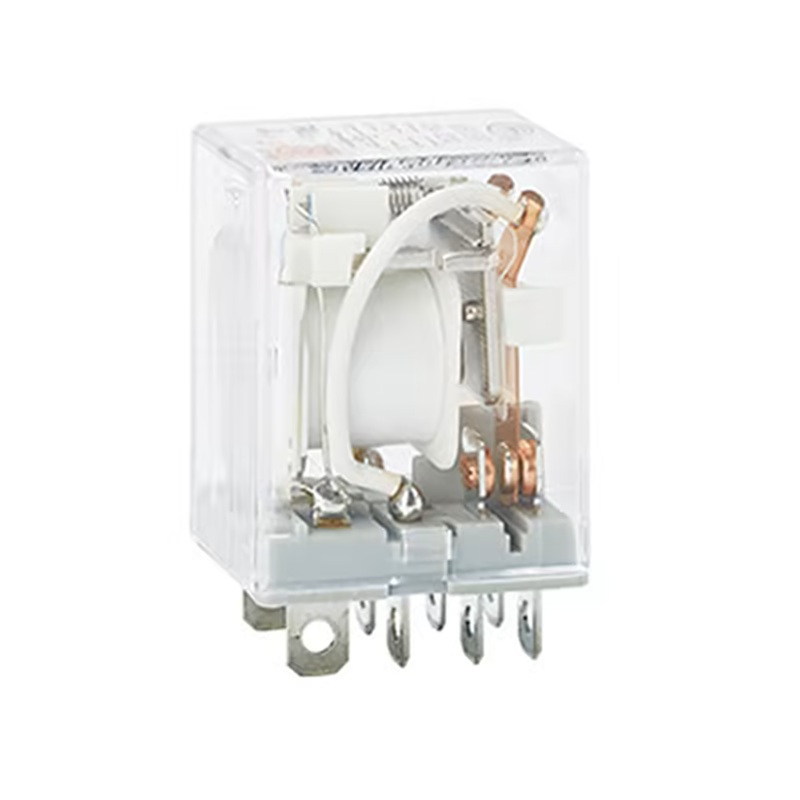

Plug In

Plug In



    • 15 Amp switching capacity



    • 1.5kW dielectric strength



    • Pole c/o contacts



    • LED indicati on



    • Contact material silver alloy



    • RoHS compliant



    • Dust protected



    • Approvals UL/CUR,TUV and CQC



    • Conforms to CE low voltage directive



    • PCB and Din Rail Plug in sockets available



    • Plug in version


Code Description Maximum Rated Switching Current Max VAC Drop Out Max VAC Pick Up Max VAC Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Price
HF13F0061Z1D HONGFA PLUG IN RELAY 6VDC 15A 1CO HF13F/006-1Z11D(016) 15 AMP 1100mW 40 x (1?10%) 6.6 0.6 4.8 6VDC 1C - 1 Pole Changeover
HF13F0121Z1D HONGFA PLUG IN RELAY 12VDC 15A 1CO HF13F/012-1Z11D(016) 15 AMP 1100mW 160 x (1?10%) 13.2 1.2 9.6 12VDC 1C - 1 Pole Changeover
HF13F0241Z1D HONGFA PLUG IN RELAY 24VDC 15A 1CO HF13F/024-1Z11D(016) 15 AMP 1100mW 650 x (1?10%) 26.4 2.4 19.2 24VDC 1C - 1 Pole Changeover
HF13F0481Z1D HONGFA PLUG IN RELAY 48VDC 15A 1CO HF13F/048-1Z11D(016) 15 AMP 1100mW 2600 x (1?10%) 52.8 4.8 38.4 48VDC 1C - 1 Pole Changeover
HF13F1101Z1D HONGFA PLUG IN RELAY 110VDC 15A 1CO HF13F/048-1Z11D(016) 15 AMP 1100mW 11000 x (1?10%) 121 11 88 110VDC 1C - 1 Pole Changeover
HF13FA0121Z1D HONGFA PLUG IN RELAY 12VAC 15A 1CO HF13F/A012-1Z11D(016) 15 AMP 13.2 3.6 9.6 1.8VA 46 x (1?10%) 12VAC 1C - 1 Pole Changeover
HF13FA0241Z1D HONGFA PLUG IN RELAY 24VAC 15A 1CO HF13F/A024-1Z11D(016) 15 AMP 26.4 7.2 19.2 1.8VA 184 x (1?10%) 24VAC 1C - 1 Pole Changeover
HF13FA0481Z1D HONGFA PLUG IN RELAY 48VAC 15A 1CO HF13F/A048-1Z11D(016) 15 AMP 52.8 14.4 38.4 1.8VA 735 x (1?10%) 48VAC 1C - 1 Pole Changeover
HF13FA1201Z1D HONGFA PLUG IN RELAY 120VAC 15A 1CO HF13F/A120-1Z11D(016) 15 AMP 132 36 96 1.8VA 4550 x (1?10%) 120VAC 1C - 1 Pole Changeover
HF13FA2401Z1D HONGFA PLUG IN RELAY 240VAC 15A 1CO HF13F/A240-1Z11D(016) 15 AMP 264 72 176 1.8VA 14400 x (1?10%) 240VAC 1C - 1 Pole Changeover
