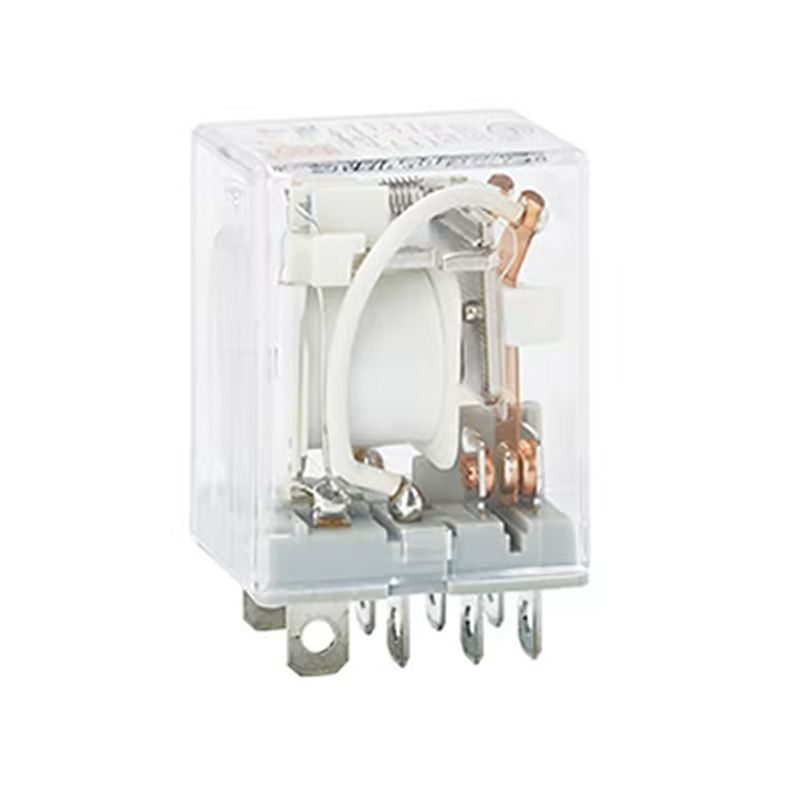

Flange

Flange

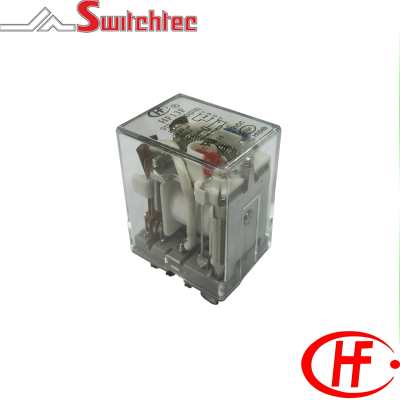

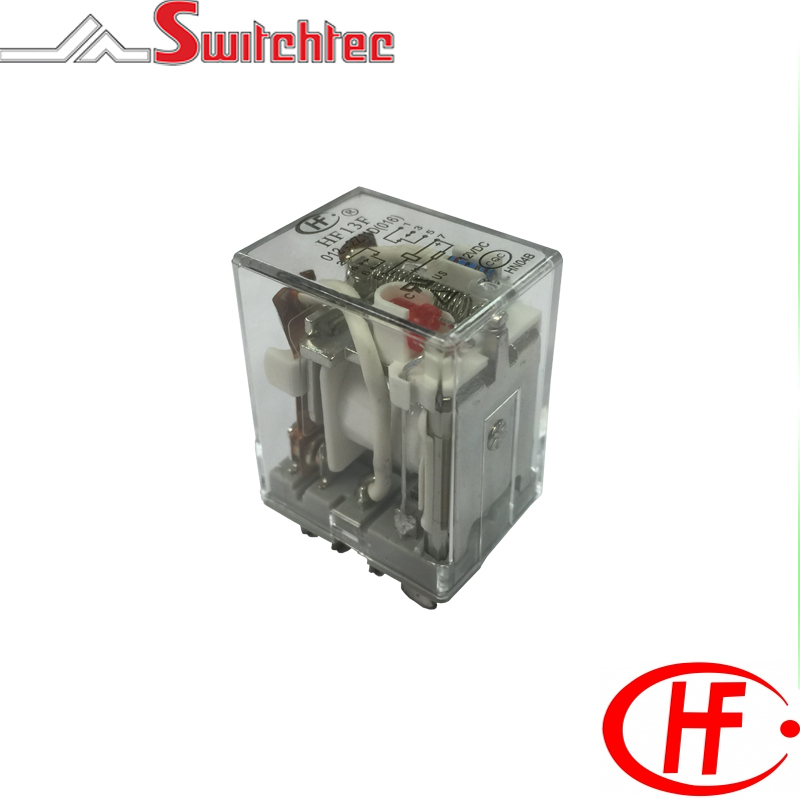

    • 15 Amp switching capacity



    • 1.5kW dielectric strength



    • Pole c/o contacts



    • LED indicati on



    • Contact material silver alloy



    • RoHS compliant



    • Dust protected



    • Approvals UL/CUR,TUV and CQC



    • Conforms to CE low voltage directive



    • PCB and Din Rail Plug in sockets available



    • Flange mounting version


Code Description Maximum Rated Switching Current Max VAC Drop Out Max VAC Pick Up Max VAC Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Price
HF13F0061Z5 HONGFA POWER RELAY 6DC 15A 1CO HF13F/006-1Z51(016) 15 AMP 1100mW 40 x (1?10%) 6.6 0.6 4.8 6VDC 1C - 1 Pole Changeover
HF13F0121Z5 HONGFA POWER RELAY 12DC 15A 1CO HF13F/012-1Z51(016) 15 AMP 1100mW 160 x (1?10%) 13.2 1.2 9.6 12VDC 1C - 1 Pole Changeover
HF13F0241Z5 HONGFA POWER RELAY 24DC 15A 1CO HF13F/024-1Z51(016) 15 AMP 1100mW 650 x (1?10%) 26.4 2.4 19.2 24VDC 1C - 1 Pole Changeover
HF13F0481Z5 HONGFA POWER RELAY 48DC 15A 1CO HF13F/048-1Z51(016) 15 AMP 1100mW 2600 x (1?10%) 52.8 4.8 38.4 48VDC 1C - 1 Pole Changeover
HF13F1101Z5 HONGFA POWER RELAY 110DC 15A 1CO HF13F/110-1Z51(016) 15 AMP 1100mW 11000 x (1?10%) 121 11 88 110VDC 1C - 1 Pole Changeover
HF13FA0121Z5 HONGFA POWER RELAY 12AC 15A 1CO HF13F/A012-1Z51(016) 15 AMP 13.2 3.6 9.6 1.8VA 46 x (1?10%) 12VAC 1C - 1 Pole Changeover
HF13FA0241Z5 HONGFA POWER RELAY 24AC 15A 1CO HF13F/A024-1Z51(016) 15 AMP 26.4 7.2 19.2 1.8VA 184 x (1?10%) 24VAC 1C - 1 Pole Changeover
HF13FA0481Z5 HONGFA POWER RELAY 48AC 15A 1CO HF13F/A048-1Z51(016) 15 AMP 52.8 14.4 38.4 1.8VA 735 x (1?10%) 48VAC 1C - 1 Pole Changeover
HF13FA1201Z5 HONGFA POWER RELAY 110AC 15A 1CO HF13F/A120-1Z51(016) 15 AMP 132 36 96 1.8VA 4550 x (1?10%) 120VAC 1C - 1 Pole Changeover
HF13FA2401Z5 HONGFA POWER RELAY 240AC 15A 1CO HF13F/A240-1Z51(016) 15 AMP 264 72 176 1.8VA 14400 x (1?10%) 240VAC 1C - 1 Pole Changeover
