Plug In

10 Amp switching capacity
1.5kW dielectric strength
Pole c/o contacts
LED indicati on
Contact material silver alloy
RoHS compliant
Dust protected
Approvals UL/CUR,TUV and CQC
Conforms to CE low voltage directive
PCB and Din Rail Plug in sockets available

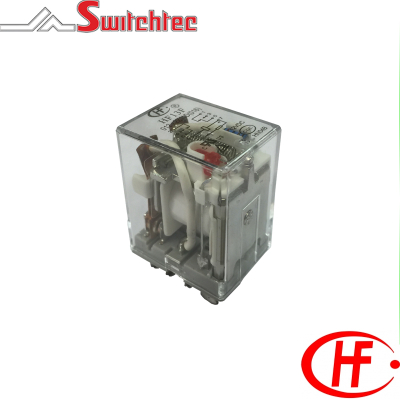

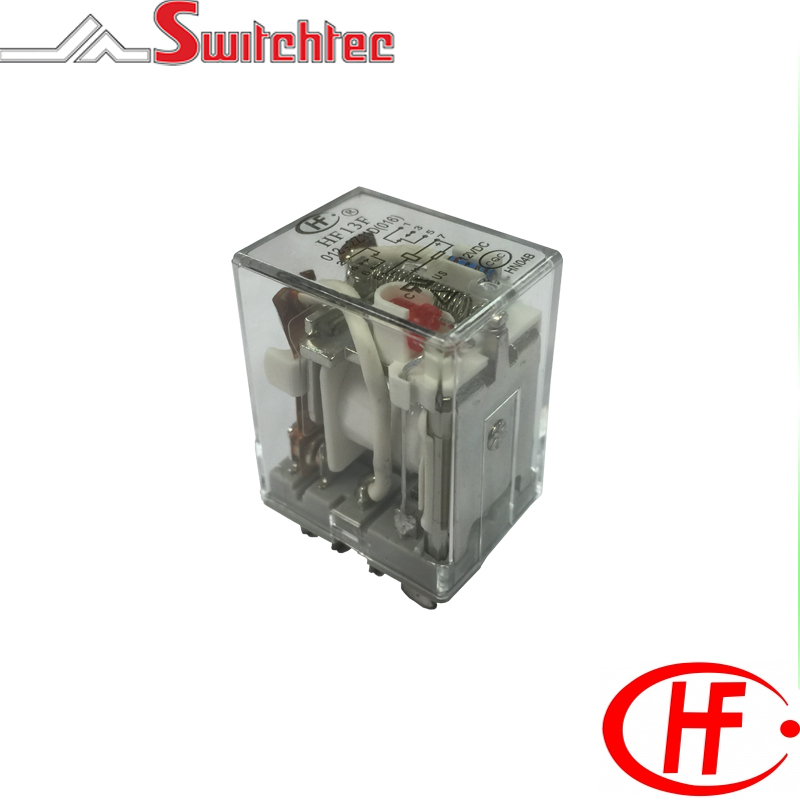

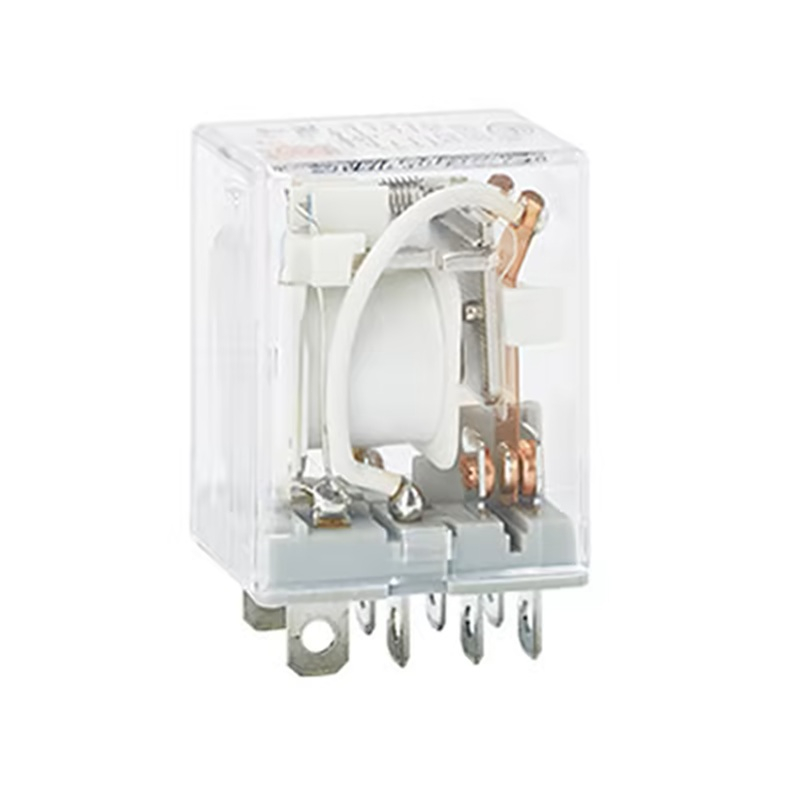

Plug In version

Code	Description	Max VAC	Drop Out Max VAC	Pick Up Max VAC	Coil Power	Coil ? ? 10%	Max VDC	Drop Out Max VDC	Pick Up Max VDC	Coil Voltage	Contact Arrangement	Maximum Rated Switching Current	Price
HF13F0052Z1D	HONGFA PLUG IN RELAY 5VDC 10A 2CO HF13F/005-2Z1D(016)				1100mW	27.5 x (1?10%)	5.5	0.5	4	5VDC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13F0062Z1D	HONGFA PLUG IN RELAY 6VDC 10A 2CO HF13F/006-2Z11D(016)				1100mW	40 x (1?10%)	6.6	0.6	4.8	6VDC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13F0122Z1D	HONGFA PLUG IN RELAY 12VDC 10A 2CO HF13F/012-2Z11D(016)				1100mW	160 x (1?10%)	13.2	1.2	9.6	12VDC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13F0242Z13D	HONGFA PLUG IN RELAY 24VDC 10A 2CO HF13F/024-2Z13D												Please login to see prices.
HF13F0482Z1D	HONGFA PLUG IN RELAY 48VDC 10A 2CO HF13F/048-2Z11D(016)				1100mW	2600 x (1?10%)	52.8	4.8	38.4	48VDC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13F1102Z1D	HONGFA PLUG IN RELAY 110VDC 10A 2CO HF13F/110-2Z11D(016)				1100mW	11000 x (1?10%)	121	11	88	110VDC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13FA0122Z1D	HONGFA PLUG IN RELAY 12VAC 10A 2CO HF13F/A012-2Z11D(016)	13.2	3.6	9.6	1.8VA	46 x (1?10%)				12VAC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13FA0242Z1D	HONGFA PLUG IN RELAY 24VAC 10A 2CO HF13F/A024-2Z11D(016)	26.4	7.2	19.2	1.8VA	184 x (1?10%)				24VAC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13FA0482Z1D	HONGFA PLUG IN RELAY 48VAC 10A 2CO HF13F/A048-2Z11D(016)	52.8	14.4	38.4	1.8VA	735 x (1?10%)				48VAC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13FA1202Z1D	HONGFA PLUG IN RELAY 120VAC 10A 2CO HF13F/A120-2Z11D(016)	132	36	96	1.8VA	4550 x (1?10%)				120VAC	2C - 2 Pole Changeover	10 AMP	Please login to see prices.
HF13FA1202Z13D	HONGFA PLUG IN RELAY 120VAC 10A 2CO HF13F/A120-2Z13D												Please login to see prices.
HF13FA2402Z13D	HONGFA PLUG IN RELAY 240VAC 10A 2CO HF13F/A240-2Z13D	264	72	176	1.8VA	14400				240VAC	2C-2 Pole Changeover	10 Amp	Please login to see prices.
