PCB

PCB



    • 10 Amp switching capacity



    • 1.5kW dielectric strength



    • Pole c/o contacts



    • LED indicati on



    • Contact material silver alloy



    • RoHS compliant



    • Dust protected



    • Approvals UL/CUR,TUV and CQC



    • Conforms to CE low voltage directive



    • PCB and Din Rail Plug in sockets available



    • PCB mounting version


Code Description Maximum Rated Switching Current Max VAC Drop Out Max VAC Pick Up Max VAC Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Price

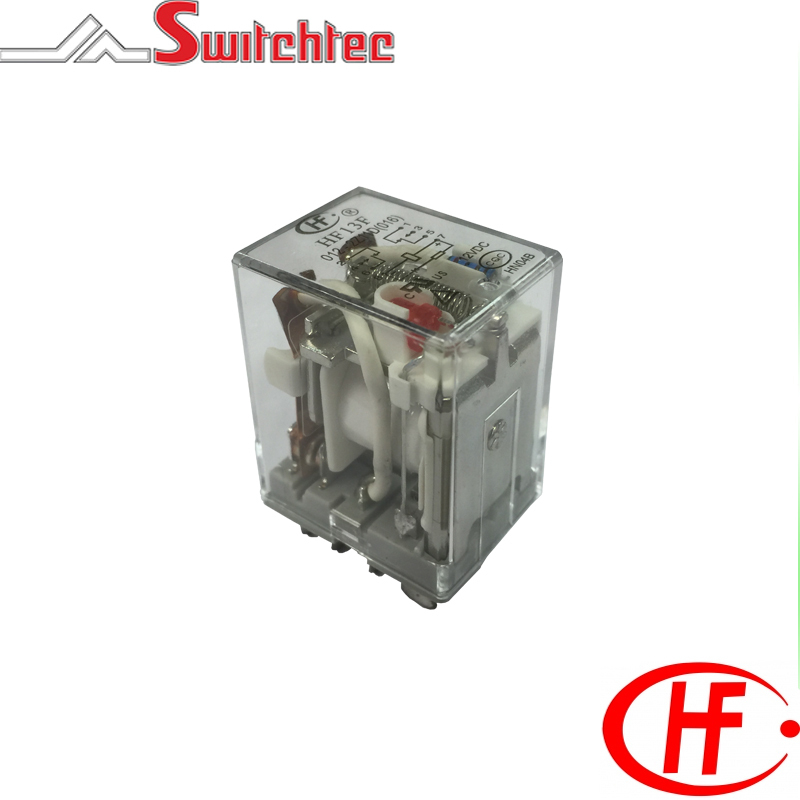

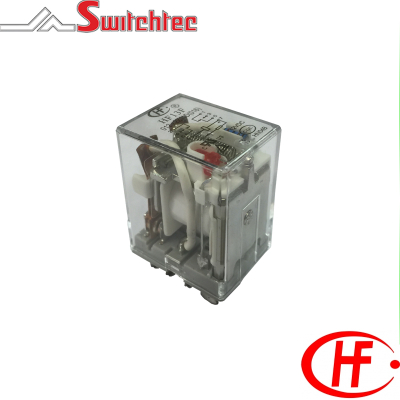

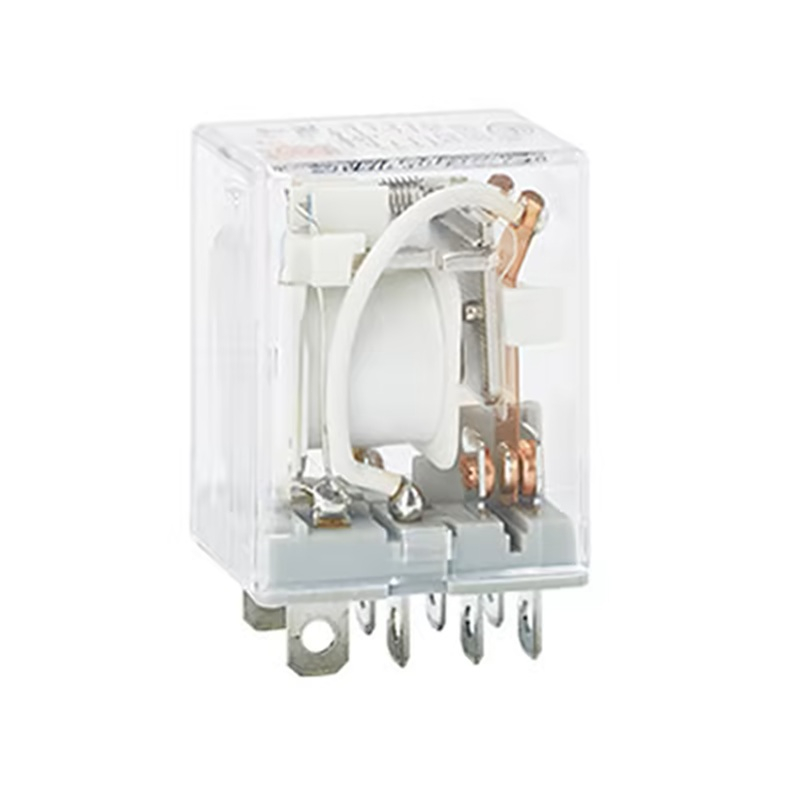

HF13FA0062Z2D HONGFA PCB POWER RELAY 6VAC 10A 2CO HF13F/A006-2Z21D(016) 10 AMP 6.6 1.8 4.8 1.8VA 11.5 x (1?10%) 6VAC 2C - 2 Pole Changeover
HF13FA0122Z2D HONGFA PCB POWER RELAY 12VAC 10A 2CO HF13F/A012-2Z21D(016) 10 AMP 13.2 3.6 9.6 1.8VA 46 x (1?10%) 12VAC 2C - 2 Pole Changeover
HF13FA0242Z2D HONGFA PCB POWER RELAY 24VAC 10A 2CO HF13F/A024-2Z21D(016) 10 AMP 26.4 7.2 19.2 1.8VA 184 x (1?10%) 24VAC 2C - 2 Pole Changeover
HF13FA0482Z2D HONGFA PCB POWER RELAY 48VAC 10A 2CO HF13F/A048-2Z21D(016) 10 AMP 52.8 14.4 38.4 1.8VA 735 x (1?10%) 48VAC 2C - 2 Pole Changeover
HF13FA1202Z2D 2CO 10A PC POWER RELAY 120VAC 10 AMP 132 36 96 1.8VA 4550 x (1?10%) 120VAC 2C - 2 Pole Changeover
HF13FA2402Z2D HONGFA PCB POWER RELAY 240VAC 10A 2CO HF13F/A240-2Z21D(016) 10 AMP 264 72 176 1.8VA 14400 x (1?10%) 240VAC 2C - 2 Pole Changeover
HF13F0052Z2D HONGFA PCB POWER RELAY 5VDC 10A 2CO HF13F/005-2Z21D(016) 10 AMP 1100mW 27.5 x (1?10%) 5.5 0.5 4 5VDC 2C - 2 Pole Changeover
HF13F0062Z2D HONGFA PCB POWER RELAY 6VDC 10A 2CO HF13F/006-2Z21D(016) 10 AMP 1100mW 40 x (1?10%) 6.6 0.6 4.8 6VDC 2C - 2 Pole Changeover
HF13F0122Z2D HONGFA PCB POWER RELAY 12VDC 10A 2CO HF13F/012-2Z21D(016) 10 AMP 1100mW 160 x (1?10%) 13.2 1.2 9.6 12VDC 2C - 2 Pole Changeover
HF13F0242Z2D HONGFA PCB POWER RELAY 24VDC 10A 2CO HF13F/024-2Z21D(016) 10 AMP 1100mW 650 x (1?10%) 26.4 2.4 19.2 24VDC 2C - 2 Pole Changeover
HF13F0482Z2D HONGFA PCB POWER RELAY 48VDC 10A 2CO HF13F/048-2Z21D(016) 10 AMP 1100mW 2600 x (1?10%) 52.8 4.8 38.4 48VDC 2C - 2 Pole Changeover
HF13F1102Z2D HONGFA PCB POWER RELAY 110VDC 10A 2CO HF13F/110-2Z21D(016) 10 AMP 1100mW 11000 x (1?10%) 121 11 88 110VDC 2C - 2 Pole Changeover
