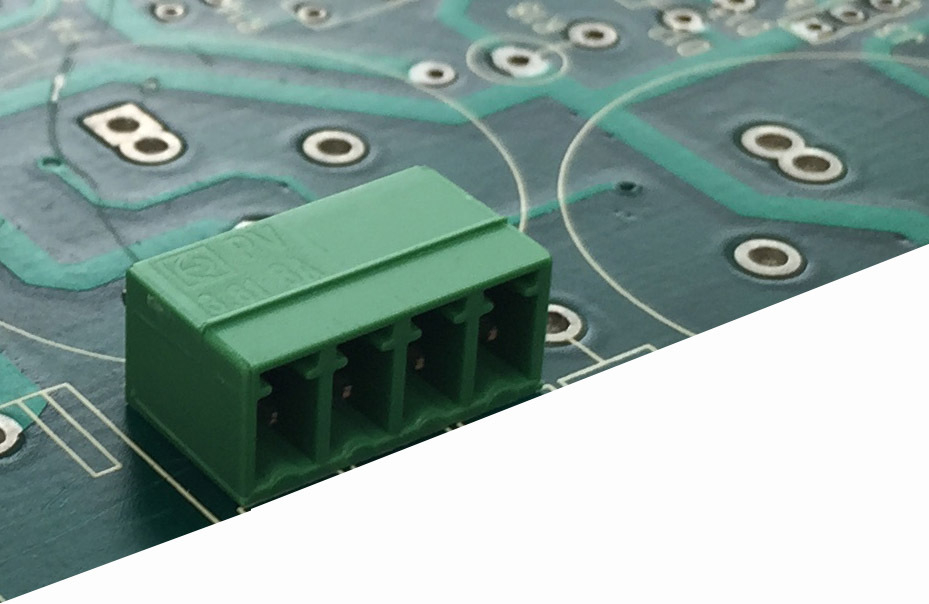

Horizontal Male 5mm Pitch Plug In Terminal Blocks Closed End

• 5.00mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connectors
• Closed headers
• Horizontal male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Code	Description	Materials (Terminals)	Cable Size, Solid (mm2)	Cable Size, Flexible (mm2)	Materials (Body)	Poles	Operating Temperature	Amperage	Pitch	Colour	Voltage	Price
PV02-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 2 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	2	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV03-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 3 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	3	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV04-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 4 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	4	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV05-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 5 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	5	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV06-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 6 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	6	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV07-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 7 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	7	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV08-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 8 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	8	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV09-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 9 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	9	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV10-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 10 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	10	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV11-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 11 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	11	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV12-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 12 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	12	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV13-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 13 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	13	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV14-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 14 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	14	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV15-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 15 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	15	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV16-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 16 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	16	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV17-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 17 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	17	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV18-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 18 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	18	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV19-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 19 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	19	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV20-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 20 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	20	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV21-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 21 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	21	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV22-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 22 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	22	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV23-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 23 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	23	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
PV24-5.00-H-P	EUROCLAMP PCB CLOSED HEADER HORIZONTAL 16A 5mm 24 POLE	Tin-plated copper alloy	N/A	N/A	PA - UL 94 V0	24	-40 to +130?C	12 AMPS	5mm	Green	250V	Please login to see prices.
