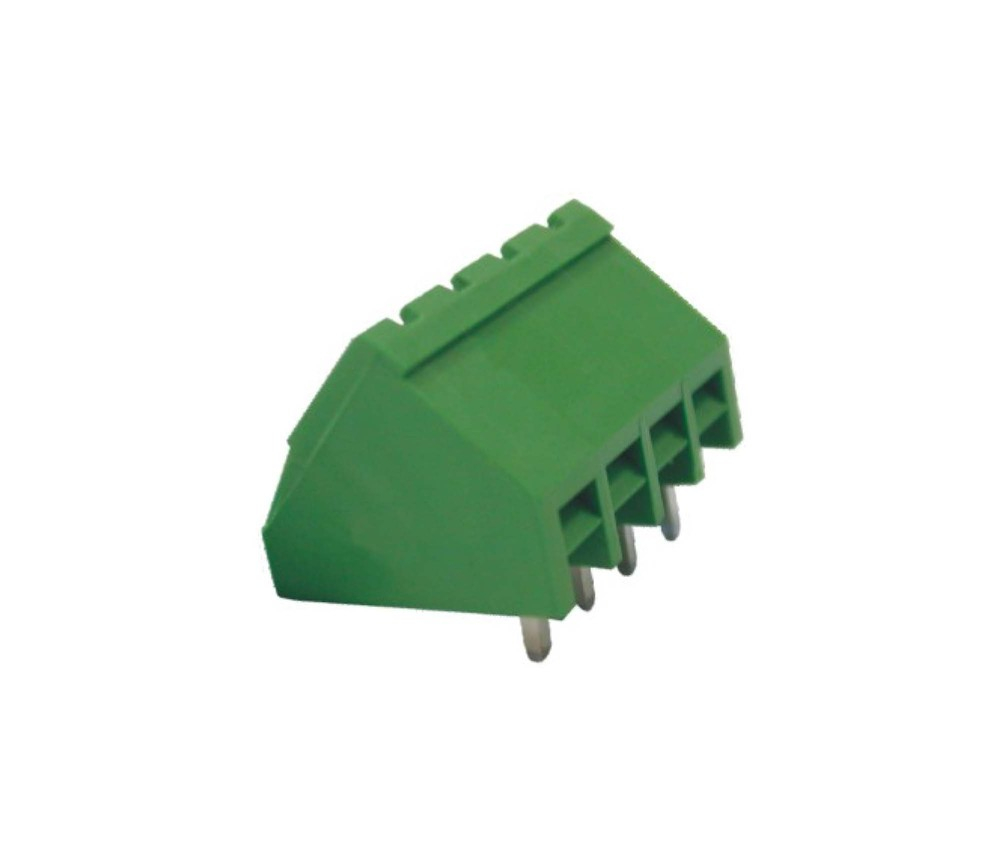

Angled Male 5.08mm Pitch Plug In Terminal Blocks Closed End

Descriptions

5.08mm Plug in connectors
2-24 pole solid block
Pluggable male connectors
Closed headers
Angled male plugs
Polarised mouldings
Moulded in green UL94-V0 flame retardant
Guided pin alignment
IMQ, VDE, UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
PI13-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 13 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	13	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI24-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 24 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	24	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI23-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 23 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	23	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI22-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 22 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	22	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI21-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 21 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	21	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI20-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 20 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	20	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI19-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 19 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	19	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI18-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 18 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	18	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI17-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 17 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	17	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI16-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 16 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	16	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI15-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 15 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	15	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI14-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 14 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	14	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI02-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 2 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	2	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI12-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 12 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	12	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI11-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 11 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	11	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI10-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 10 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	10	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI09-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 9 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	9	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI08-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 8 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	8	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI07-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 7 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	7	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI06-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 6 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	6	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI05-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 5 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	5	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI04-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 4 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	4	12 AMP	Green	-40 to +130℃	Please login to see prices.
PI03-5.08-IQ-P	EUROCLAMP PLUGIN PC CONNECTOR ANGLED 16A 5.08mm 3 POLE BOX	N/A	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	3	12 AMP	Green	-40 to +130℃	Please login to see prices.
