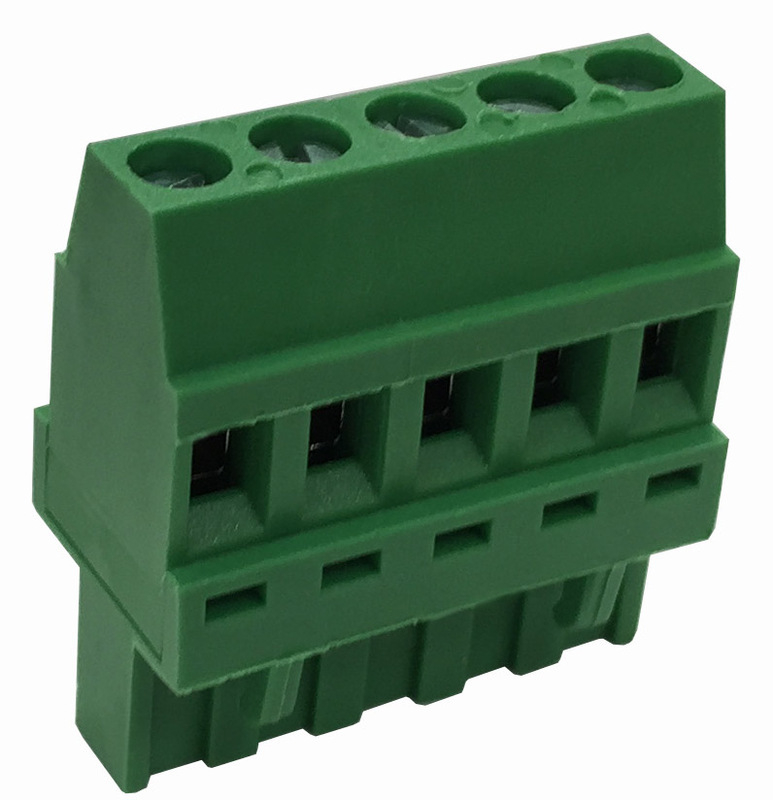

Back Vertical 5.08mm Pitch Plug In Terminal Blocks

Descriptions

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in greenUL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours availableupon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
SV07-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 7 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	3	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV08-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 8 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	4	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV11-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 11 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	6	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV13-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 13 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	8	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV14-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 14 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	9	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV16-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 16 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	11	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV17-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 17 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	12	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV18-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 18 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	14	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV19-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 19 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	15	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV20-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 20 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	17	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV21-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 21 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	19	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV22-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 22 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	20	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV23-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 23 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	22	12 AMP	Green	-40 to +130℃	Please login to see prices.
SV24-5.08-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 5.08mm 24 POLE	2.5	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	24	12 AMP	Green	-40 to +130℃	Please login to see prices.
