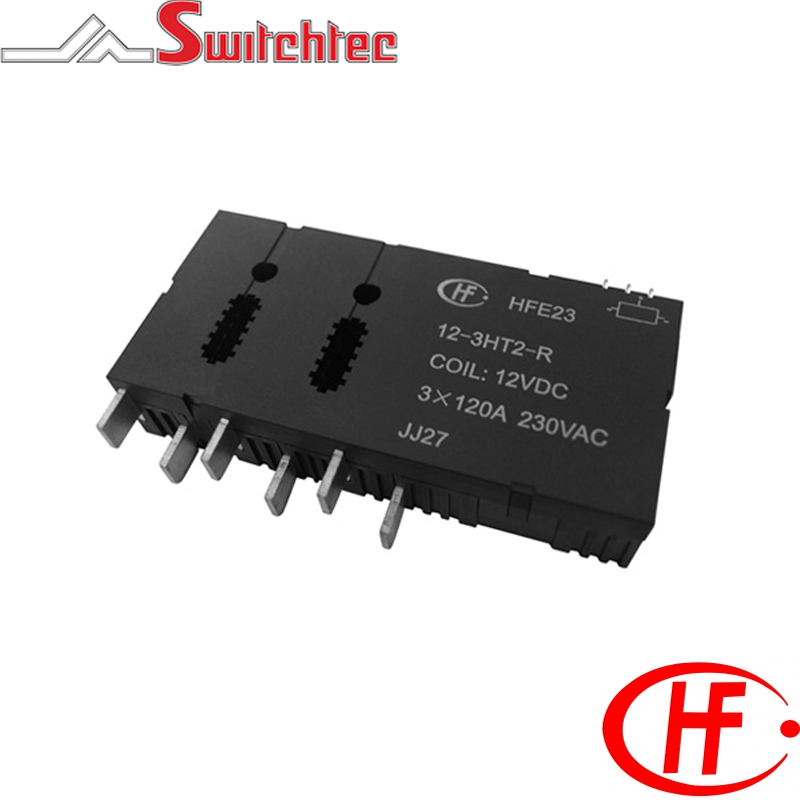

Single Coil Latching

Single Coil Latching



    • 3 phases latching relay



    • 120A switching capability



    • UC3 compliant in accordance with IEC 62055-31



    • Heavy load up to 27.6kVA



    • 4Kv dielectric strength between coil and contacts



    • RoHScompliant


Code Description Maximum Rated Switching Current Contact Arrangement Coil Voltage Pick Up Max VDC Coil ? ? 10% Pulse Duration ms min. Price
HFE23A0063HT1 HONGFA LATCHING RELAY 6VDC 120A 3NO HFE23-A/012-3HT1 120AMP 3A - 3 Pole Normally Open 6VDC 4.8 7 x (1?10%) 100
HFE23A0093HT1 HONGFA LATCHING RELAY 9VDC 120A 3NO HFE23-A/009-3HT1 120AMP 3A - 3 Pole Normally Open 9VDC 7.2 16 x (1?10%) 100
HFE23A0123HT1 HONGFA LATCHING RELAY 12DC 120A 3NO HFE23-A/012-3HT1 120AMP 3A - 3 Pole Normally Open 12VDC 9.6 29 x (1?10%) 100
HFE23A0243HT1 HONGFA LATCHING RELAY 24DC 120A 3NO HFE23-A/024-3HT1 120AMP 3A - 3 Pole Normally Open 24VDC 19.2 115 x (1?10%) 100
HFE23A0483HT1 HONGFA LATCHING RELAY 48DC 120A 3NO HFE23-A/048-3HT1 120AMP 3A - 3 Pole Normally Open 48VDC 38.4 460 x (1?10%) 100
