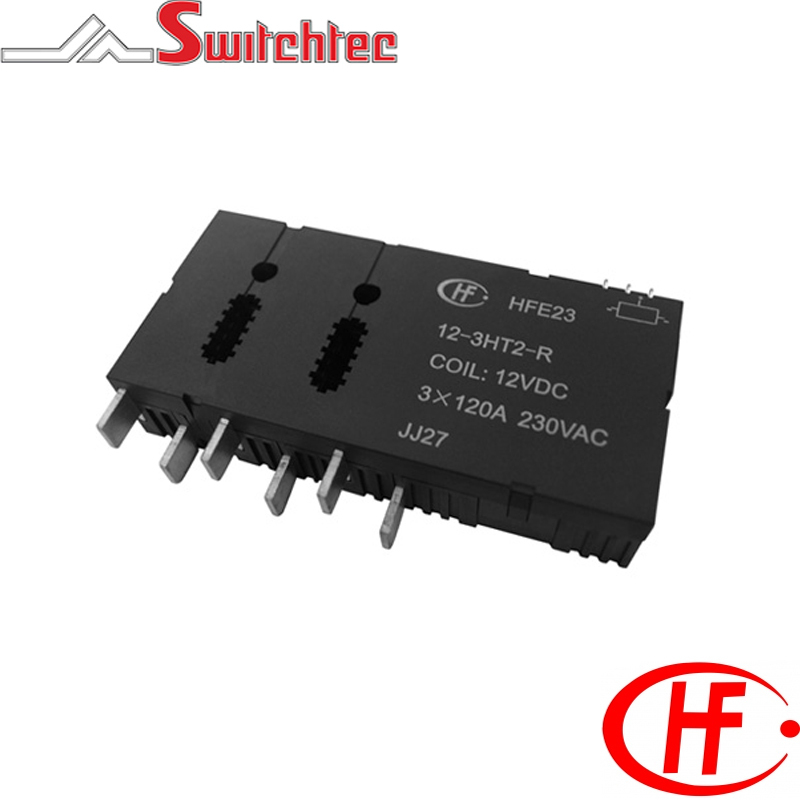

Double Coil Latching

Double Coil Latching



    • 3 phases latching relay



    • 120A switching capability



    • UC3 compliant in accordance with IEC 62055-31



    • Heavy load up to 27.6kVA



    • 4Kv dielectric strength between coil and contacts



    • RoHScompliant


Code Description Maximum Rated Switching Current Contact Arrangement Coil Voltage Pick Up Max VDC Coil ? ? 10% Pulse Duration ms min. Price
HFE23A0063HT2 HONGFA LATCHING RELAY 6VDC 120A 3NO HFE23-A/012-3HT2 120AMP 3A - 3 Pole Normally Open 6VDC 4.8 3.5 + 3.5 x (1?10%) 100
HFE23A0093HT2 HONGFA LATCHING RELAY 9VDC 120A 3NO HFE23-A/009-3HT2 120AMP 3A - 3 Pole Normally Open 9VDC 7.2 8 + 8 x (1?10%) 100
HFE23A0123HT2 HONGFA LATCHING RELAY 12DC 120A 3NO HFE23-A/012-3HT2 120AMP 3A - 3 Pole Normally Open 12VDC 9.6 14.5 + 14.5 x (1?10%) 100
HFE23A0243HT2 HONGFA LATCHING RELAY 24DC 120A 3NO HFE23-A/024-3HT2 120AMP 3A - 3 Pole Normally Open 24VDC 19.2 57.5 + 57.5 x (1?10%) 100
HFE23A0483HT2 HONGFA LATCHING RELAY 48DC 120A 3NO HFE23-A/048-3HT2 120AMP 3A - 3 Pole Normally Open 48VDC 38.4 230 + 230 x (1?10%) 100
