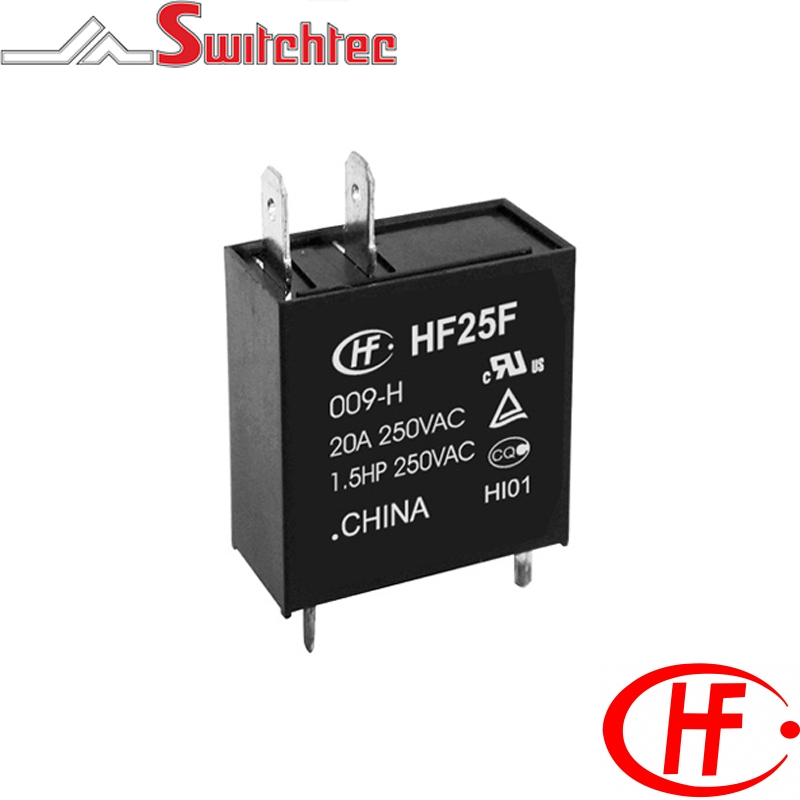

20 Amp 1 Pole Normally Open Relay

20 Amp 1 Pole Normally Open Relay

  • 20 Amp switching capacity
  • 1 Form A contact
  • 500mW Coil
  • 1.5HP 250VAC approved by ULstandard
  • 5KV dielectric strength (between coil and contacts)
  • PCB & QC layouts
  • Flux proofed types available
  • RoHS compliant
  • Approvals UL, VDE, TUV and CQC


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF25F005HS HONGFA PCB POWER RELAY 5VDC 20A 1NO HF25F/005-HS 500mW 50 x (1?10%) 6.5 0.25 3.75 5VDC 1A - Single Pole Normally Open 20 AMP
HF25F006HS HONGFA PCB POWER RELAY 6VDC 20A 1NO HF25F/006-HS 500mW 72 x (1?10%) 7.8 0.3 4.5 6VDC 1A - Single Pole Normally Open 20 AMP
HF25F012HS HONGFA PCB POWER RELAY 12VDC 20A 1NO HF25F/012-HS 500mW 288 x (1?10%) 15.6 0.6 9 12VDC 1A - Single Pole Normally Open 20 AMP
HF25F018HS HONGFA PCB POWER RELAY 18VDC 20A 1NO HF25F/018-HS 500mW 648 x (1?10%) 23.4 0.9 13.5 18VDC 1A - Single Pole Normally Open 20 AMP
HF25F024HS HONGFA PCB POWER RELAY 24VDC 20A 1NO HF25F/024-HS 500mW 1152 x (1?10%) 31.2 1.2 18 24VDC 1A - Single Pole Normally Open 20 AMP
