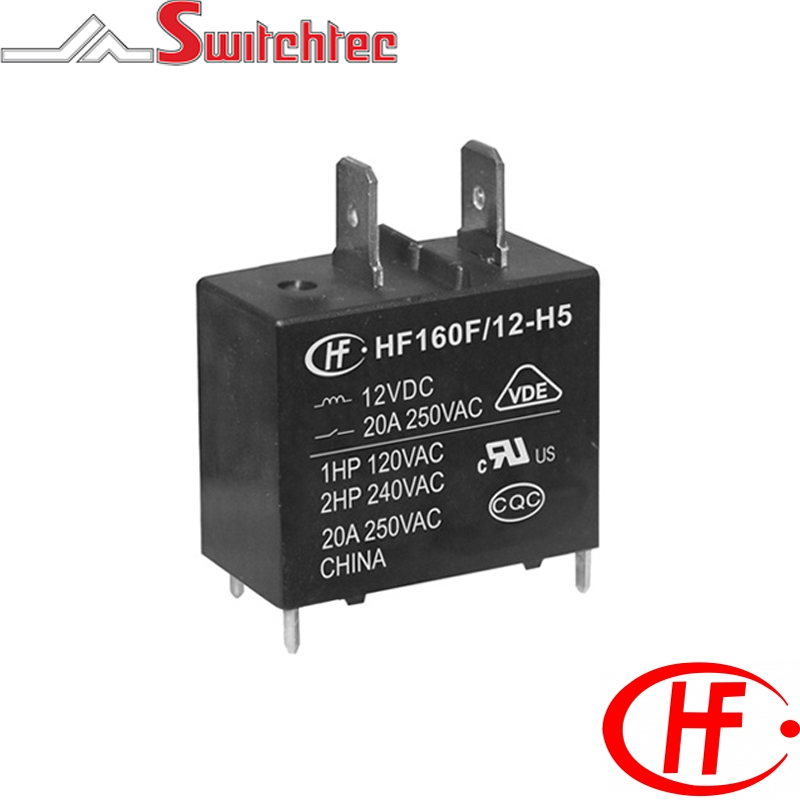

20 Amp 1 Pole Normally Open Relay

20 Amp 1 Pole Normally Open Relay

  • 20 Amp switching capacity
  • 1 Form A contact
  • 900mW Coil
  • 4.5KV dielectric strength (between coil and contacts)
  • Heavy load up to 6250VA
  • Ideal for motor switching
  • PCB & QC layouts
  • RoHS compliant
  • Approvals UL, VDE and CQC


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF160F005H5T HONGFA PCB POWER RELAY 5VDC 20A 1NO HF160F/005-H5T 900mW 160 x (1?10%) 14.4 1.2 8.4 12VDC 1A - Single Pole Normally Open 25 AMP
HF160F012H5T HONGFA PCB POWER RELAY 12VDC 20A 1NO HF160F/012-H5T 900mW 640 x (1?10%) 28.8 2.4 16.8 24VDC 1A - Single Pole Normally Open 25 AMP
HF160F024H5T HONGFA PCB POWER RELAY 24VDC 20A 1NO HF160F/024-H5T 900mW 2560 x (1?10%) 57.6 4.8 33.6 48VDC 1A - Single Pole Normally Open 25 AMP
HF160F048H5T HONGFA PCB POWER RELAY 48VDC 20A 1NO HF160F/048-H5T
