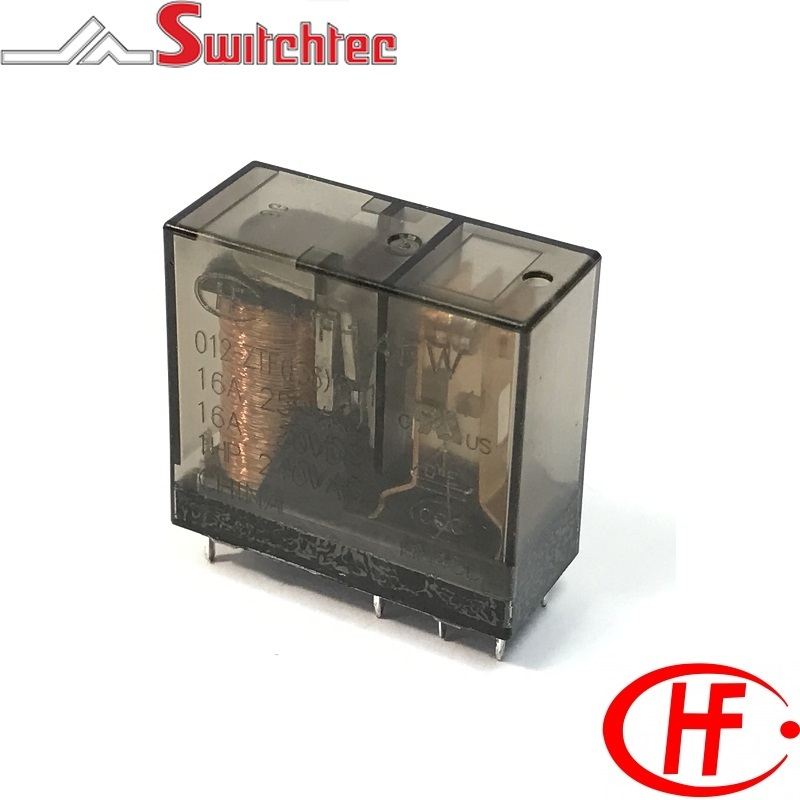

16 Amp 1 Pole Normally Open - 1 Form A

  • 16 Amp switching capacity
  • 4Kv dielectric strength (between coil and contacts)
  • Standard andSensitive coil versions
  • Flux proof sealed
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL/CUL, TUV, CQC and VDE
  • TV-8 rating at 125VAC Form A contact
  • PC & Din Rail Plug in sockets available
Code Description Amperage Contact Arrangement Coil Voltage Max VDC Coil Power Price
HF14FW005HTF HONGFA PCB POWER RELAY 5VDC 16A HF14FW/005-HTF(611)(136) 16 Amp 1 Normally Open 5VDC 7VDC 530mW
HF14FW006HTF HONGFA PCB POWER RELAY 6VDC 16A HF14FW/006-HTF(611)(136) 16 Amp 1 Normally Open 6VDC 8.4VDC 530mW
HF14FW009HTF HONGFA PCB POWER RELAY 9VDC 16A HF14FW/009-HTF(611)(136) 16 Amp 1 Normally Open 9VDC 12.6VDC 530mW
HF14FW012HTF HONGFA PCB POWER RELAY 12VDC 16A HF14FW/012-HTF(611)(136) 16 Amp 1 Normally Open 12VDC 16.8VDC 530mW
HF14FW018HTF HONGFA PCB POWER RELAY 18VDC 16A HF14FW/018-HTF(611)(136) 16 Amp 1 Normally Open 18VDC 25.2VDC 530mW
HF14FW024HTF HONGFA PCB POWER RELAY 24VDC 16A HF14FW/024-HTF(611)(136) 16 Amp 1 Normally Open 24VDC 33.6VDC 530mW
HF14FW048HTF HONGFA PCB POWER RELAY 48VDC 16A HF14FW/048-ZTF(611)(136) 16 Amp 1 Normally Open 48VDC 67.2VDC 530mW
HF14FW060HTF HONGFA PCB POWER RELAY 60VDC 16A HF14FW/060-HTF(611)(136) 16 Amp 1 Normally Open 60VDC 84VDC 530mW
HF14FW110HTF HONGFA PCB POWER RELAY 110VDC 16A HF14FW/110-HTF(611)(136) 16 Amp 1 Normally Open 110VDC 530mW
