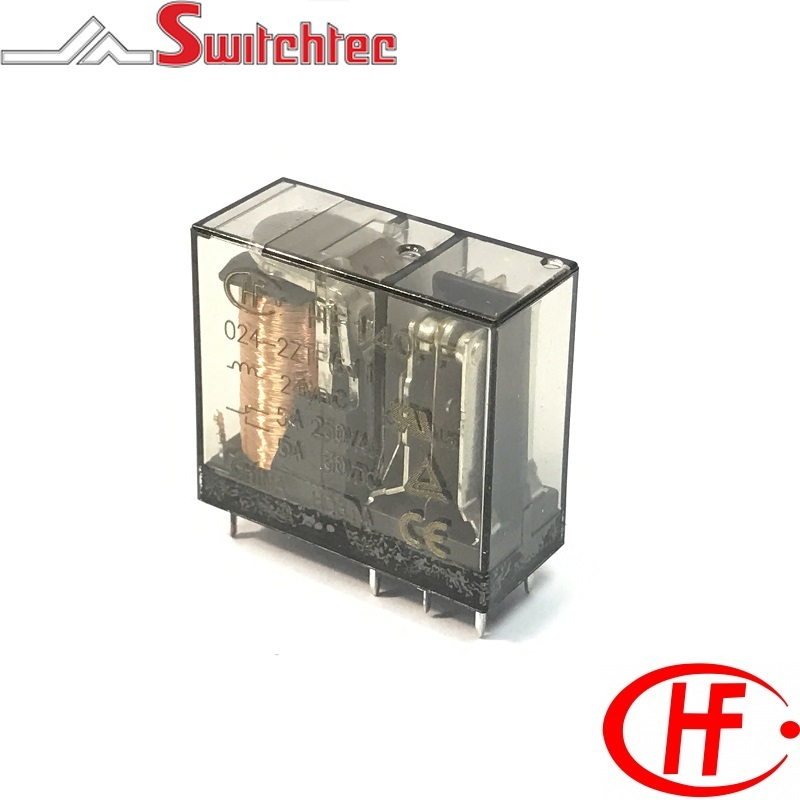

10 Amp 2 Pole Changeover - 2 Form C

10 Amp 2 Pole Changeover - 2 Form C

  • 10 Amp switching capacity
  • 5KV dielectric strength (between coil and contacts)
  • Flux Proof Sealled
  • Contact materials AgSnO2, Available on request AgCdO & AgNi
  • RoHS compliant
  • Approvals UL/CUL, TUV and COC
  • PC & Din sockets available


Code Description Coil Power Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF140FF0032ZTF HONGFA PCB POWER RELAY 3VDC 10A 2CO HF140FF/003-2ZTF(611) 1400mW 3.9VDC 0.3VDC 2.25VDC 3VDC 2 Pole Change Over 10A
HF140FF0052ZTF HONGFA PCB POWER RELAY 5VDC 10A 2CO HF140FF/005-2ZTF(611) 1400mW 6.5 0.5 3.75 5VDC 2 Pole Change Over 10 Amp
HF140FF0062ZTF HONGFA PCB POWER RELAY 6VDC 10A 2CO HF140FF/006-2ZTF(611) 1400mW 7.8 0.6 4.5 6VDC 2 Pole Change Over 10 AMP
HF140FF0092ZTF HONGFA PCB POWER RELAY 9VDC 10A 2CO HF140FF/009-2ZTF(611) 1400mW 11.7 0.9 6.75 9VDC 2 Pole Change Over 10 Amp
HF140FF0122ZTF HONGFA PCB POWER RELAY 12VDC 10A 2CO HF140FF/012-2ZTF(611) 1400mW 15.6 1.2 9 12VDC 2 Pole Change Over 10 AMP
HF140FF0182ZTF HONGFA PCB POWER RELAY 18VDC 10A 2CO HF140FF/018-2ZTF(611) 1400mW 23.4 1.8 13.5 18VDC 2 Pole Change Over 10 Amp
HF140FF0242ZTF HONGFA PCB POWER RELAY 24VDC 10A 2CO HF140FF/024-2ZTF(611) 1400mW 31.2 2.4 18 24VDC 2 Pole Change Over 10 AMP
HF140FF0482ZTF HONGFA PCB POWER RELAY 48VDC 10A 2CO HF140FF/048-2ZTF(611) 1400mW 62.4 4.8 36 48VDC 2 Pole Change Over 10 Amp
HF140FF0602ZTF HONGFA PCB POWER RELAY 60VDC 10A 2CO HF140FF/060-2ZTF(611) 1400mW 78 6 45 60VDC 2 Pole Change Over 10 Amp
HF140FF1102ZTF HONGFA PCB POWER RELAY 110VDC 10A 2CO HF140FF/110-2ZTF(611) 1400mW 110VDC 2 Pole Change Over 10 Amp
