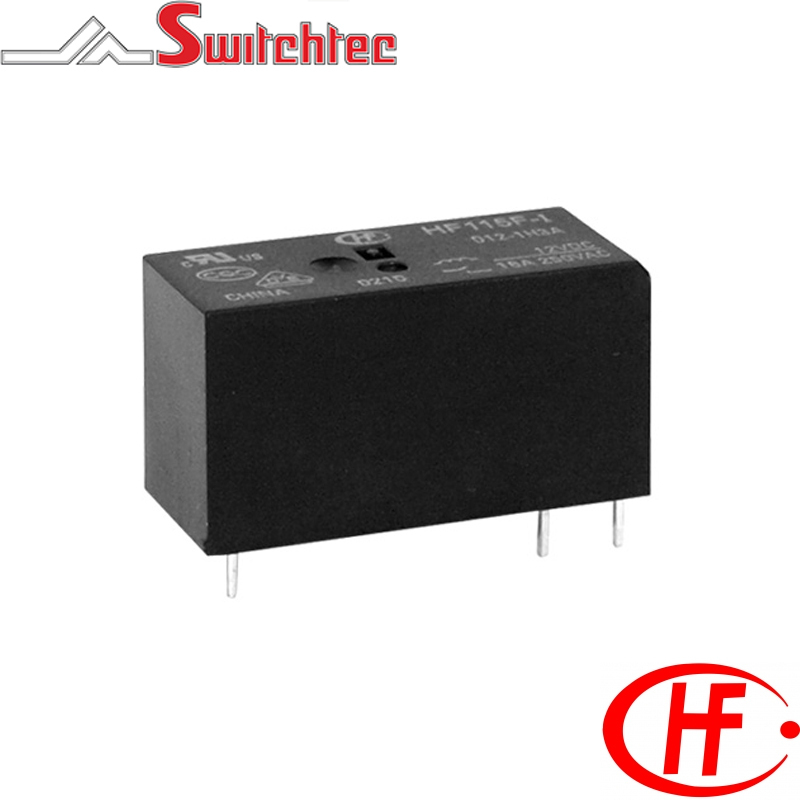

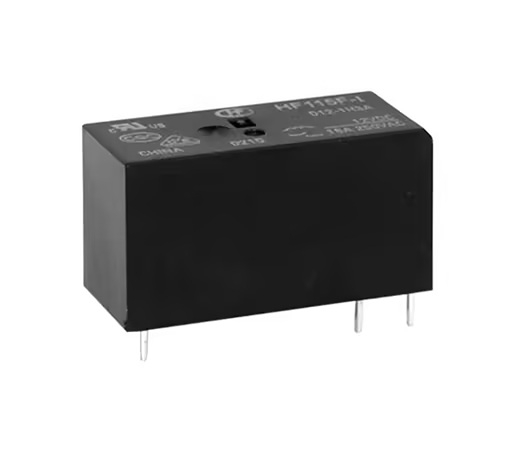

16 Amp 1 Pole Changeover - 1 Form C

16 Amp 1 Pole Changeover - 1 Form C

  • 16 amp switching capacity
  • High inrush TV5, 80A (at 125VAC)
  • Low height: 15.7mm
  • 1 pole Form C contact
  • 5KVA dielectric strength (between coil & contacts)
  • Creepage distance 10mm
  • Contact Material AgSnO2In2O3
  • Wash tight
  • RoHS Complaint
  • Approvals VDE, UL & CUL 0435/0631/0700/0860
  • Relays compliant with IEC 60335 -1 also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FI0051ZS3A HONGFA PCB POWER RELAY 5VDC 16A 1CO HF115F-I/005-1ZS3A 1C - Single Pole Changeover 5VDC 400mW 7.5 16 AMP 3.5 0.5 62 x (1�10%)
HF115FI0061ZS3A HONGFA PCB POWER RELAY 6VDC 16A 1CO HF115F-I/006-1ZS3A 1C - Single Pole Changeover 6VDC 400mW 9 16 AMP 4.2 0.6 90 x (1�10%)
HF115FI0091ZS3A HONGFA PCB POWER RELAY 9VDC 16A 1CO HF115F-I/009-1ZS3A 1C - Single Pole Changeover 9VDC 400mW 13.5 16 AMP 6.3 0.9 202 x (1�10%)
HF115FI0121ZS3A HONGFA PCB POWER RELAY 12VDC 16A 1CO HF115F-I/012-1ZS3A 1C - Single Pole Changeover 12VDC 400mW 18 16 AMP 8.4 1.2 360 x (1�10%)
HF115FI0181ZS3A HONGFA PCB POWER RELAY 18VDC 16A 1CO HF115F-I/018-1ZS3A 1C - Single Pole Changeover 18VDC 400mW 27 16 AMP 12.6 1.8 810 x (1�10%)
HF115FI0241ZS3A HONGFA PCB POWER RELAY 24VDC 16A 1CO HF115F-I/024-1ZS3A 1C - Single Pole Changeover 24VDC 400mW 36 16 AMP 16.8 2.4 1440 x (1�10%)
HF115FI0481ZS3A HONGFA PCB POWER RELAY 48VDC 16A 1CO HF115F-I/048-1ZS3A 1C - Single Pole Changeover 48VDC 400mW 72 16 AMP 33.6 4.8 5760 x (1�15%)
HF115FI0601ZS3A HONGFA PCB POWER RELAY 60VDC 16A 1CO HF115F-I/060-1ZS3A 1C - Single Pole Changeover 60VDC 400mW 90 16 AMP 42 6 7500 x (1�15%)
HF115FI1101ZS3A HONGFA PCB POWER RELAY 110DC 16A 1CO HF115F-I/110-1ZS3A 1C - Single Pole Changeover 110VDC 400mW 165 16 AMP 77 11 25200 x (1�15%)
