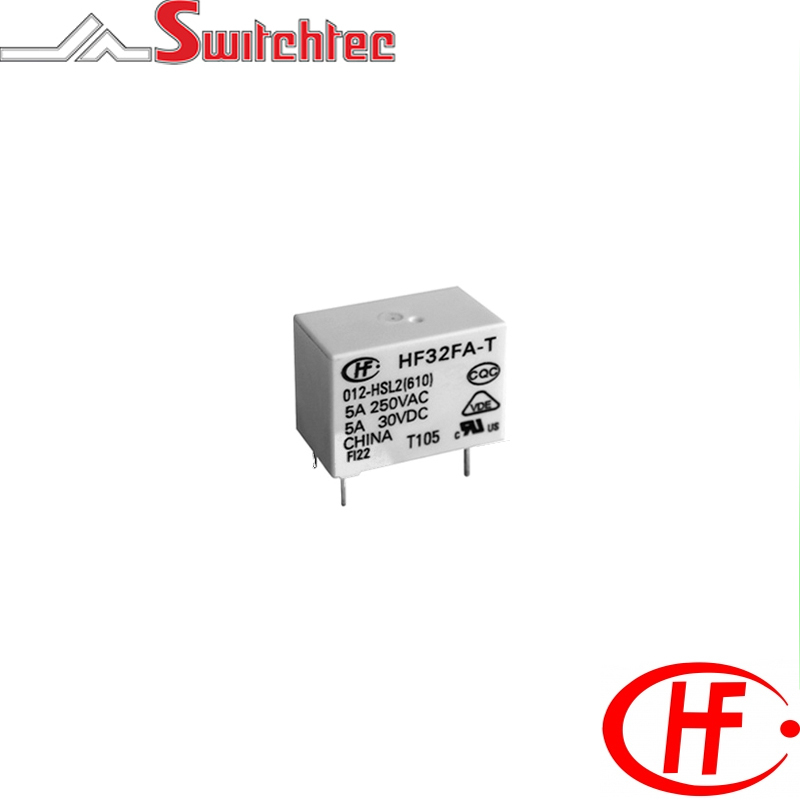

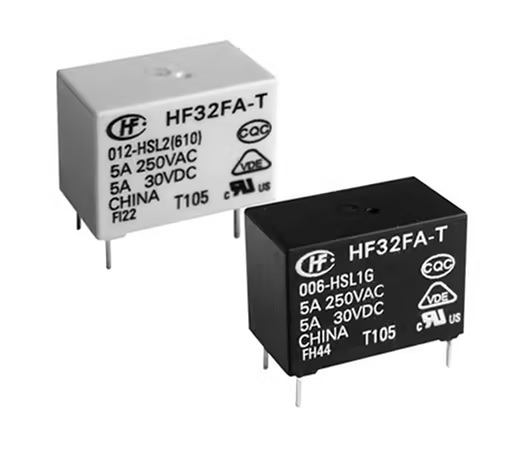

Sensitive Coil, Type 2 Termination

Sensitive Coil, Type 2 Termination

  • 5A switching capability
  • High temperature: 105C
  • 1 Form A contact meets VDE 0700, 0631
  • Sensititive Coils 200mW
  • Wash tight
  • Creepage/Clearance distance >8mm
  • 5Kv Dielectric strenght (between coils and contacts)
  • Contact material AgNi
  • Gold plated contacts avilable (min switching voltage 5VDC 10mA)
  • RoHS compliant
  • Safety approvals UL/CUR & VDE


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF32FAT003HSL2 HONGFA PCB POWER RELAY 3VDC 5A 1NO HF32FA-T/003-HSL2 200mW 45 x (1?10%) 5.1 0.15 2.25 3VDC 1A - Single Pole Normally Open 5AMP
HF32FAT005HSL2 HONGFA PCB POWER RELAY 5VDC 5A 1NO HF32FA-T/005-HSL2 200mW 125 x (1?10%) 8.5 0.25 3.75 5VDC 1A - Single Pole Normally Open 5AMP
HF32FAT006HSL2 HONGFA PCB POWER RELAY 6VDC 5A 1NO HF32FA-T/006-HSL2 200mW 180 x (1?10%) 10.2 0.3 4.5 6VDC 1A - Single Pole Normally Open 5AMP
HF32FAT009HSL2 HONGFA PCB POWER RELAY 9VDC 5A 1NO HF32FA-T/009-HSL2 200mW 400 x (1?10%) 15.3 0.45 6.75 9VDC 1A - Single Pole Normally Open 5AMP
HF32FAT012HSL2 HONGFA PCB POWER RELAY 12VDC 5A 1NO HF32FA-T/012-HSL2 200mW 720 x (1?10%) 20.4 0.6 9 12VDC 1A - Single Pole Normally Open 5AMP
HF32FAT018HSL2 HONGFA PCB POWER RELAY 18VDC 5A 1NO HF32FA-T/018-HSL2 200mW 1600 x (1?10%) 30.6 0.9 13.5 18VDC 1A - Single Pole Normally Open 5AMP
HF32FAT024HSL2 HONGFA PCB POWER RELAY 24VDC 5A 1NO HF32FA-T/024-HSL2 200mW 2800 x (1?10%) 40.8 1.2 18 24VDC 1A - Single Pole Normally Open 5AMP
HF32FAT048HSL2 HONGFA PCB POWER RELAY 48VDC 5A 1NO HF32FA-T/048-HSL2 - - - - - - - -
