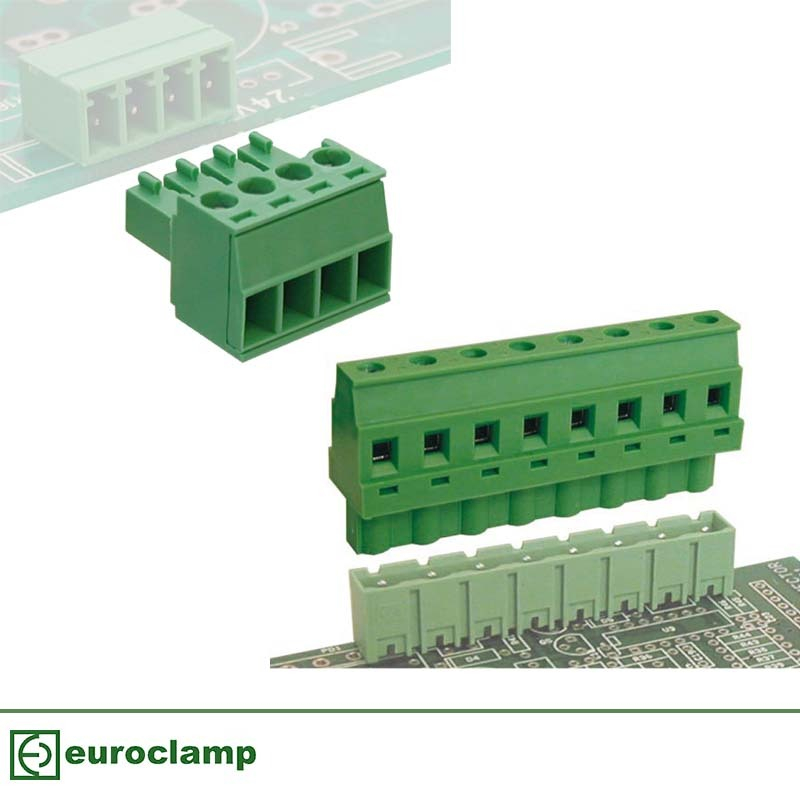

Back Vertical 3.81mm Pitch Plug In Terminal Blocks

Back Vertical 3.81mm Pitch Plug In Terminal Blocks

• 3.81mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours availableupon request
Code Description Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Colour Voltage Price
SV02-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 2 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 2 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV03-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 3 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 3 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV04-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 4 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 4 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV05-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 5 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 5 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV06-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 6 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 6 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV07-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 7 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 7 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV08-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 8 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 8 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV09-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 9 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 9 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV10-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 10 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 10 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV11-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 11 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 11 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV12-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 12 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 12 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV13-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 13 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 13 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV14-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 14 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 14 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV15-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 15 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 15 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV16-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 16 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 16 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV17-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 17 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 17 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV18-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 18 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 18 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV19-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 19 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 19 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV20-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 20 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 20 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV21-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 21 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 21 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV22-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 22 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 22 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV23-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 23 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 23 -40 to +130?C 8 AMPS 3.81mm Green 160V
SV24-3.81-P EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 24 POLE Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 24 -40 to +130?C 8 AMPS 3.81mm Green 160V
